Emfocus, an electromagnetic focused shockwave therapy device, is a non-invasive, drug-free treatment that promotes healing, reduces pain, and supports tissue recovery. It's a natural option for a variety of conditions across different medical fields, including orthopedics, sports medicine, urology, dermatology, cardiology, and veterinary care.
· Elbow pain (Epicondylopathy)
· Heel spurs & plantar fasciitis
· Achilles tendinopathy (Achillodynia)
· Shoulder pain (e.g., supraspinatus tendonitis, calcific shoulder tendonitis)
· Patellar tendinitis
· IT band friction syndrome & tibial stress syndrome
· Greater trochanteric pain syndrome
· Morton’s neuroma & fibromyalgia
· Myofascial trigger points & muscle pain relief
· Osteoarthritis pain relief
· Promotes: Bone healing, tissue regeneration, immunity support, and pain relief
· Vascular erectile dysfunction (VED)
· Chronic prostatitis & chronic pelvic pain syndrome (CPPS)
· Peyronie’s disease (Induratio penis plastica)
· Improves erectile function by:
- Promoting new blood vessel growth (neoangiogenesis)
- Reducing fibrosis and remodeling tissue
- Stimulating nerve recovery/regeneration
- Reducing sympathetic/adrenergic tone
Emfocus offers a natural, non-invasive approach for addressing pain and accelerating recovery across various medical conditions.
🔹 Electromagnetic focus shockwave technology is a newer generation technology. EMFOCUS can provide deeper tissue with more depth penetration than radial waves, focusing its output on more localized and deeper regions.
🔹 The position of the applicator on the skin is minimally affected, limiting damage to the surface skin and underlying soft tissues (safer and more comfortable).
🔹 EMFOCUS treats at defined spots within the body and is further adapted depending on the required depth. This accuracy feature makes Focused Shock Wave Therapy much better for treating deeper issues within the body.
🔹 The number sessiona are varied widely, this is a treatment for the general public. You can increase or decrease the number of shots according to the actual situation of the customer:
🔹 It is normal to experience tingling sensations or mild tenderness. If moderate or severe pain is reported, stop treatment immediately. Check that the applicator is not against the pelvic bone.
🔹 Not suitable for certain individuals: This includes pregnant women, children, and anyone undergoing cancer treatment.
🔹 Absolute contraindications: Pregnancy; thrombosis; coagulation disorders (hemophilia); tumor diseases; acute inflammation; presence of pus in the target area.
🔹 Radial shockwave therapy is particularly suitable for affecting tissues closer to the surface of the skin. This method is often used for treating ailments like carpal tunnel syndrome, tennis elbow, and achilles tendonitis due to its non-invasive nature and ease of application.
🔹 In contrast, focused shockwave therapy provides much more precise and can penetrate deeper into the body. This makes it suitable for treating conditions closer to the bone, such as calcifications and cases of delayed or non-unions.
🔹 Choosing between radial and focused shockwave therapy depends on your injury. If you have conditions like tennis elbow or plantar fasciitis, radial shockwave therapy is usually better.
🔹 For issues affecting deeper tissues, like tendons and ligaments, focused shockwave therapy is the way to go. Always check with your doctor before starting any treatment.

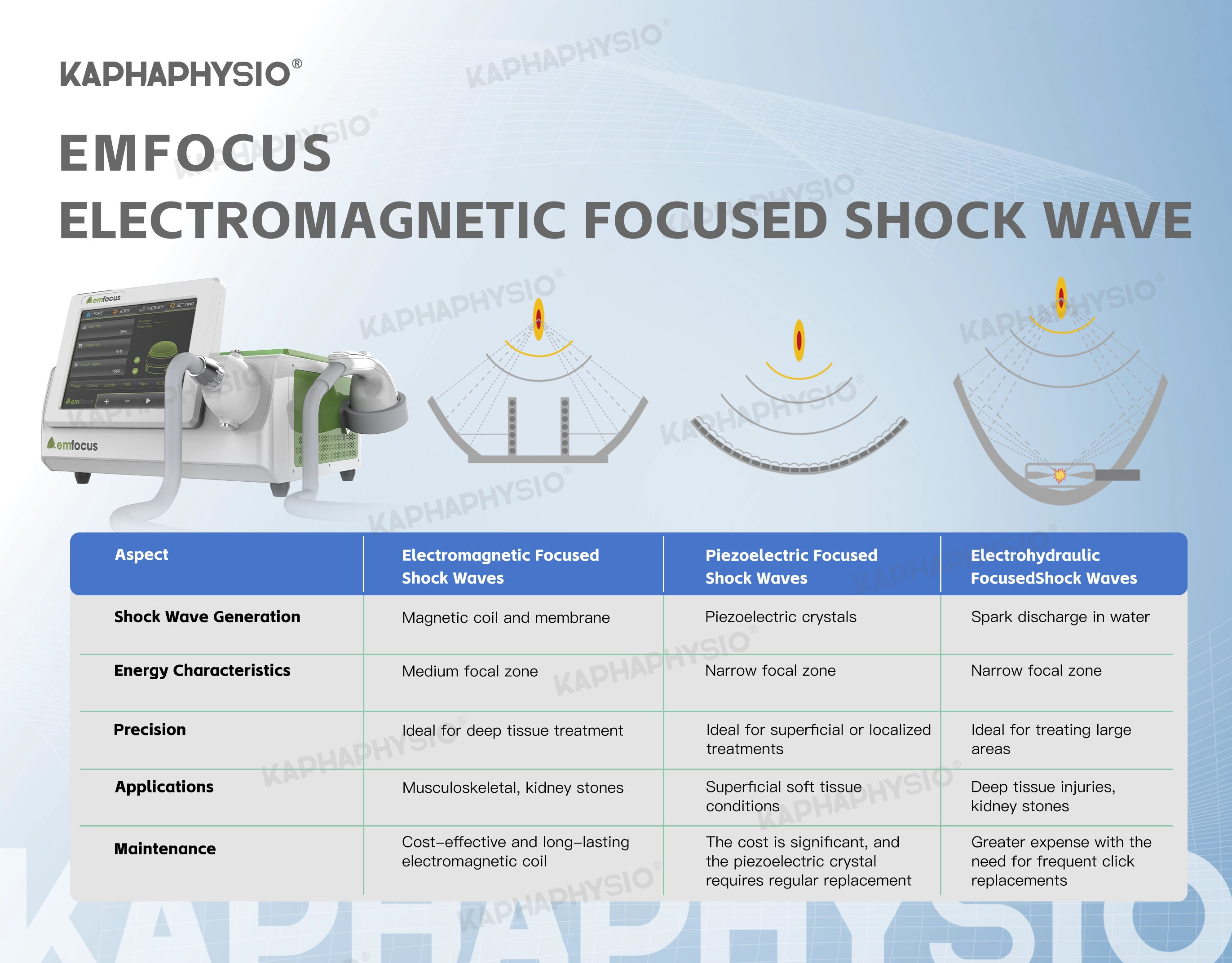

🔹 EMFOCUS is an electromagnetic shock wave. Common focused shock waves are divided into three types: electromagnetic focus shockwave, Piezoelectric and Electrohydraulic.
🔹 The electrohydraulic focused shockwave is the most expensive. The consumables and maintenance costs are also extremely high.
🔹 The advantage of using a water bladder to adjust the impact depth of electromagnetic focused shock waves is that there is no need to replace the gel pad to adjust the depth like piezoelectric focused shock waves. However, this also places higher requirements on the professionalism of the operator, who needs to manually adjust the height of the water bladder according to the symptoms for treatment.
At a Glance
🔹 No gel pad.
🔹 Game-changing and affordable focus shockwave.
🔹 Wider clinical applications.
🔹 Well denied, precise focus - perfect for diagnosis and therapy.
🔹 Wide range of energy settings with a pulse rate of up to 4 Hz.
🔹 12.1 inch large touch screen.
🔹 User-friendly software with treatment protocols and preset parameters.
🔹 Easy-to-operate handle with intensity adjustment buttons.
🔹 Single handle
🔹 Precise treatment
🔹 Auto water circulation
🔹 Long lasting results
🔹 Low maintenance cost
Learn More detials
🔹 EMFOUCS feature 1
This Machine uses water to generate focused shockwaves. This is the handle of the machine, which can adjust the energy by adjusting the water level. The higher the water level, the lower the energy，the shallower the penetration; the lower the water level, the greater the energy,the deeper the penetration.
🔹 EMFOCUS feature 2
The automatic water circulation principle can maintain a constant temperature inside the machine, allowing the machine to work for a long time without losing energy.
· maintains a consistently
· high level of energy output
· throughout its entire service life
🔹 EMFOCUS Feature 3
· Compared with the piezoelectric focused shockwave, the biggest advantage of our electromagnetic focusing shock wave is that it does not need to replace the gel pad, it can continue to work for a long time, the effect is long-lasting and there are no consumables
· Electromagnetic handle is lighter，and easier to use, with a trigger on the handpiece, makes the operator experience much more comfortable.
🔹 EMFOCUS feature 4
· Our emfocus has a larger treatment zone, allowing for greater accuracy. area more than five times larger than the area covered by the piezoelectric handpiece.
🔹 EMFOCUS feature 5

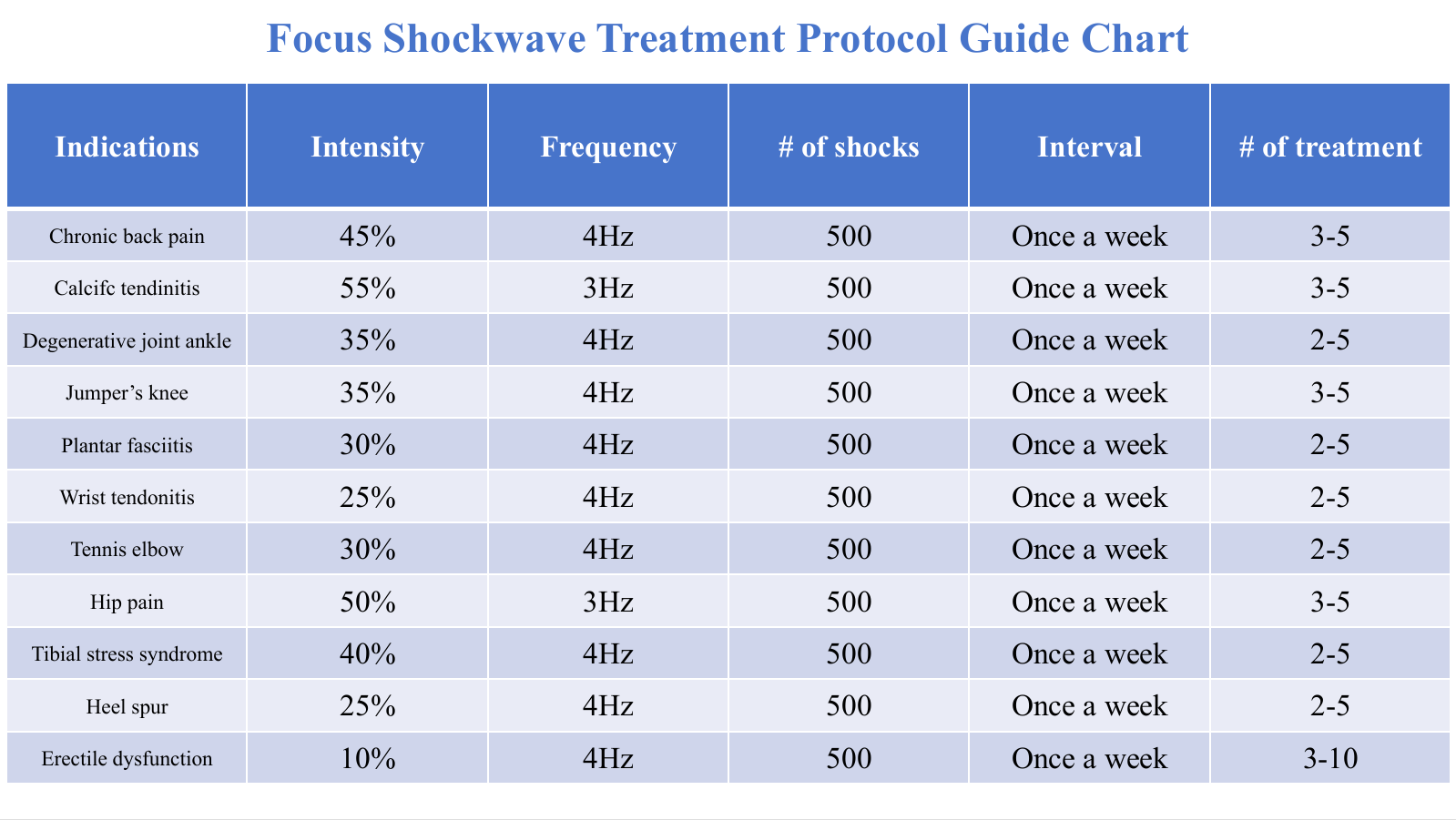

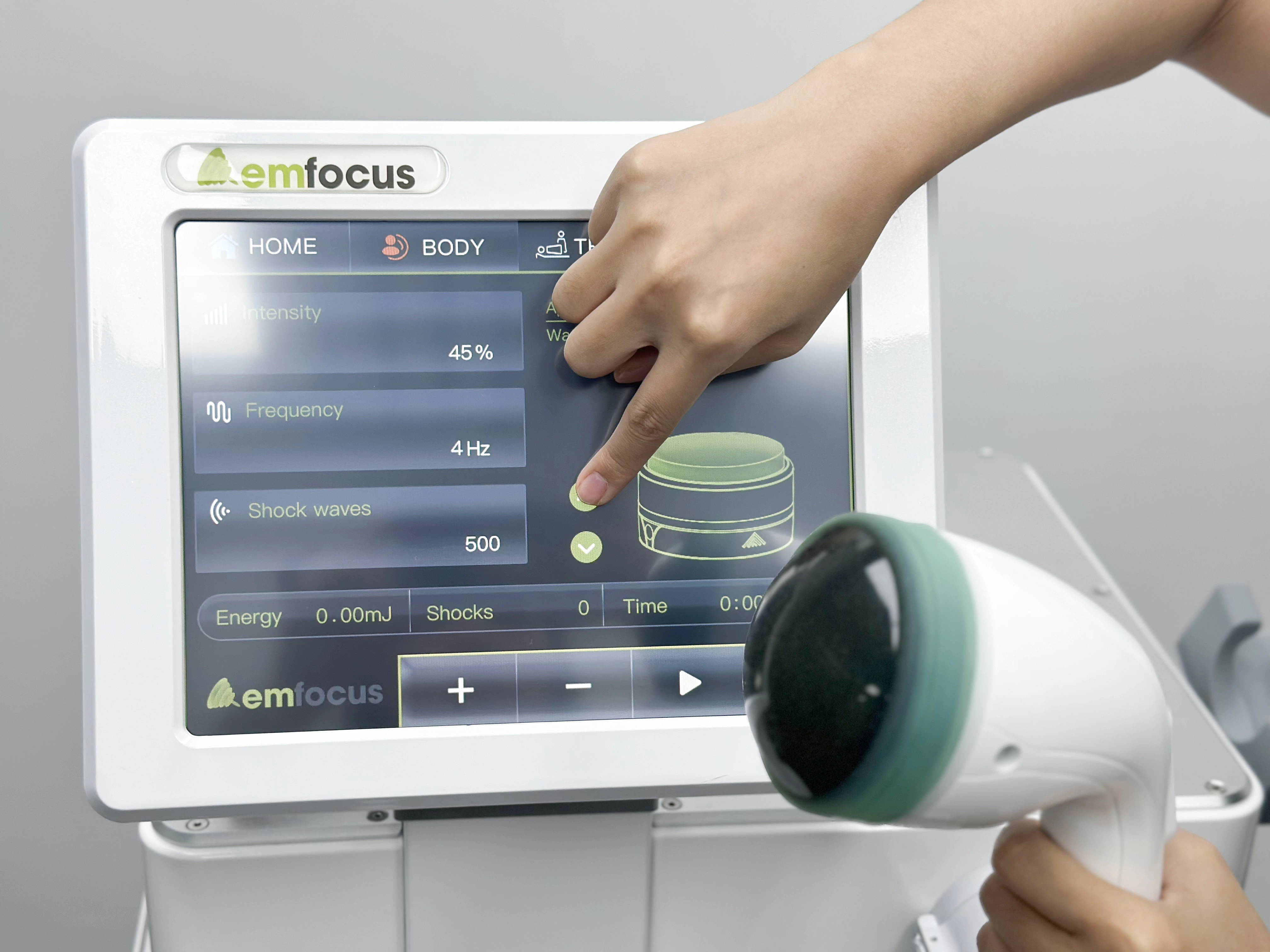

The screen of the machine has upgraded 29 treatment symptoms and professional treatment guides. Each symptom has default parameters. At the same time, you can also manually adjust the energy, frequency and Preload in the "therapy" interface.
🔹 Let look at a demonstration video to show the following details about the EMFOCUS electromagnetic focus shockwave:
1. comparison between radial shockwave and focus shockwave
2. usage
3. software
4. maintenance
5, functions
6. advantages
7. accessories
🔹 This is the gel pad that used by the storz medical or other devices. Gel pad is the treatment head for the focus shockwave. Different size of the gel pad has the different penetration. When the therapy requires different penetration, they need to change the gel pad.
🔹 But in the EMFOCUS shockwave, we can control the penetration depth by controlling the water level. No need to change the gel pad. Only one treatment head/applicator. This is the gel pad, when install the gel pad, they need to add some gel into it. So that is the reason they call it gel pad（=treatment head）
🔹 For the EMFOCUS shockwave, we can control the water level by these two buttons, lower water level and deeper penetration. The deepest focus zone is 65mm when the water level is lowest.
🔹 For the EMFOCUS shockwave, we can control the water level by these two buttons, lower water level and deeper penetration. The deepest focus zone is 65mm when the water level is lowest.
🔹 Customer might have another question, is it the penetration depth is only 60mm/6cm?
🔹 The answer is no. The penetration depth are deeper than 65mm. 65mm is the focal zone position, which mean in 65mm layer, there is the largest intensity. And its intensity can influence the surrounding layer. That means the intensity can reach over 65mm, the max is around 12mm, it depends on the body tissue. For the soft tissue, it has less resistive, deeper penetration.
🔹 To apply the gel on the skin is necessary for every shockwave therapy. The gel is the conductive medium that carries the shockwave energy. If no gel, the intensity will be reduced a lot. So there is another tips, before the treatment, apply enough gel. During the treatment, if the gel is consumed, add again. Make sure there is enough gel.
🔹 A test video about how the EMFOCUS shockwave breaks down the calcification(frozen shoulder/adhesive tissue).
🔹 The life of each applicator is 500,000 shocks After around 500,000 shocks, the intensity will be decreased. For example, the max intensity i can use in the low back is 40%. After around 700,000 shocks, i might use 70% intensity. If we feel the intensity is not enough, we can buy a new applicator.

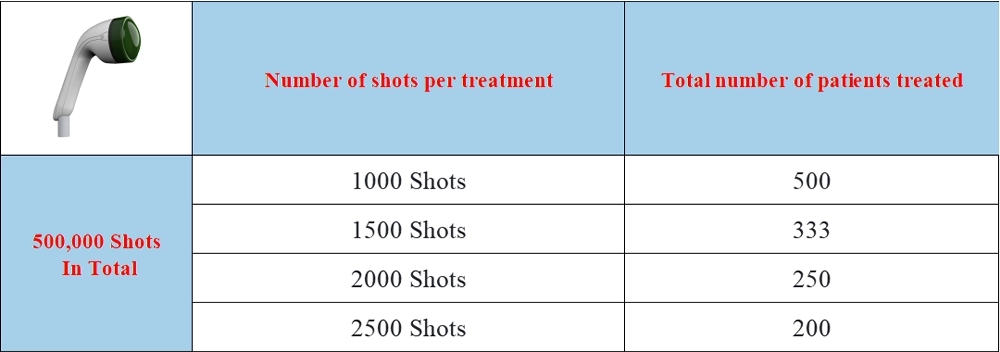

🔹 New applicator price: $700/Unit. Each treatment can do 1000-1500 treatments. Each treatment costs about $100. So a $700 handle can be exchanged for $10,000 to $15,000.
🔹 Sessions about each treatment area: About 300-500 shocks for each treatment area.

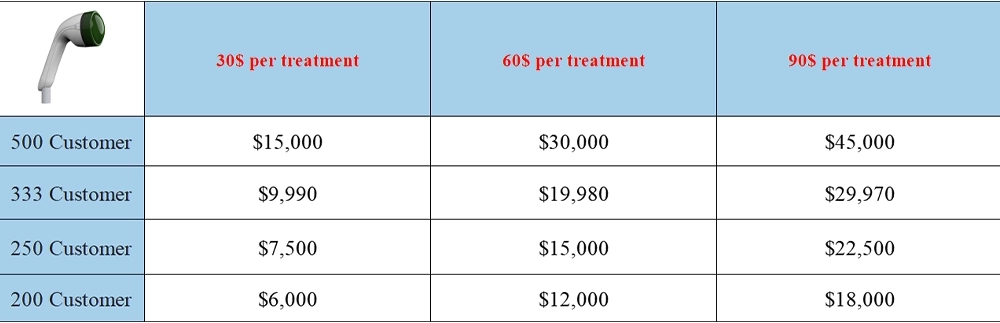

🔹 Return on investment ratio for your reference.
🔹The only maintenance of the EMFOCUS: change the water every month. It adopts the electromagnetic technology to produce the focus shockwave.
1) Electromagnetic coil will heat up during the shocks. Water cooling system guarantees the high efficient heat dissipation and ensure the stable energy output. Change the water guarantees that the waste will not stop the water flow and influence the heat dissipation.
2) EMFOCUS controls the penetration depth by controlling the water level in the water bladder.
3) EMFOCUS Pre-use Guidelines-Three guidelines before and after using the machine：
Guide 1: Always power off the machine before installing or replacing the applicator
Guide 2: Adding distilled water before using the machine
Guide 3: Changing the water every 2 weeks
🔹Water flow control: While the handpiece is well-designed, the water flow seems inconsistent. Even after emptying the system and putting the device in standby mode, it refills automatically. Even after emptying the system and putting the device in standby mode, it refills automatically. This suggests that during operation, the water flow might vary, potentially affecting the precision of the wave delivery. This suggests that during operation, the water flow might vary, potentially affecting the precision of the wave delivery. I reflected this opinion to the engineer.
1. Regarding the default number of hits you mentioned, it can be customized and set the parameters you need.
2. Regarding the frequency of the machine, the default frequency is 1-4HZ, and the frequency customization of 1-10HZ can be accepted.
🔹The gap because of no enough water. Please adjust the water level by clicking the "+" or "-" in the screen. If the water level decreases automatically, that means the water pump works for the drainage pump works too much. We can enter the advanced setting to adjust it.
🔹Our emfocus machine don't have to be recalibrated. If customer feel the intensity is not enough after 500,000 shocks. A new applicator needs to be replaced. Cost 700USD, not include the shipping.
🔹 Male ED dysfunction is caused by blockage of the corpus cavernosum, which leads to blood vessel congestion. What we need to do is to stimulate the corpus cavernosum, so that the blood vessels can be supplied normally and the corpus cavernosum can be congested.
🔹 The energy of our shockwave is concentrated in the center of the handle. Aim the center of the handle at the blood vessel and move it slowly. The ED area is sensitive and does not require strong energy. Reduce the energy and raise the water level of the handle.
🔹 In fact, our recommended number of treatment strokes is no more than 1,000 strokes per session, depending on the condition, the corresponding number of treatments per week, and if you need more strokes, you can only repeat the setting of the number of strokes. The number of hits of EM FOCUS is equivalent to 3-5 hits of the same type of focused shock wave. That is, 1000 hits are actually equivalent to 3000-5000 hits of other focused shock waves.
🔹The treatment efficiency is actually more efficient. For focused shock waves, it is necessary to replace the handle. Similar to piezoelectric focused shock waves, the gel pad needs to be replaced.
🔹 When developing this machine, we have tried our best to improve work efficiency, reduce after-sales costs, and low maintenance. The latest customizable parameters are expressed in brochure.
🔹 The water in the machine have two function:
1. Water cooling system,can ensure the quick cooling effect and stable energy output.
2. Auto water circulation,through adjusting the handle bladder water lever to control shockwave penetration depth.
In order to ensure the smooth circulation of water and cooling effect, we need to change the water regularly.
If the water is not replaced frequently, the water circulation path will be blocked by scale.
🔹 Warranty:
(1) Host machine: 12 months
(2) Spare part is 6 months, not include the consumable.
(3) As the original manufacturer, we guarantee the lifetime technical support
🔹 Replacement:
(1) When there is problem in the device, customer need to describe the problem in words and shoot a short video for the judgement. The necessary parts will be sent out within 24 hours after the confirmation.
(2) A detailed video will be sent to guide how to do the replacement. That will be easy. We have provided such remote after-sales service since 2017. Every customer can do the replacement in a safe and easy way.
The necessary part we send is a module. That means what you need to do is to remove the connection line of the broken part and connect the new part again.
🔹 Cost:
(1）Within the warranty, you do not need to pay anything and get the necessary parts for free
(2) Out of the warranty, the necessary parts will be provided at after-sales price.
🔹 We can customize the program for you in the next machine. The frequency of this customized machine is 1-8Hz.
