WHAT IS ELECTROMAGNETIC FOCUS SHOCKWAVE?

🔹  Electromagnetic focus shockwave technology is a newer generation technology. It discharges high-voltage electricity to the electric coil and to form a powerful pulse electromagnetic field energy. The electromagnetic wave generates a deep shock wave in the water. Its advantage is that the output energy is extremely stable, the focal length is long, and the lifespan of the electromagnetic generator is also long-lasting and stable.

🔹  EMFOCUS can provide deeper tissue with more depth penetration than radial waves,focusing its output on more localized and deeper regions. The position of the applicator on the skin is minimally affected, limiting damage to the surface skin and underlying soft tissues (safer and more comfortable). EMFOCUS treats at defined spots within the body and is further adapted depending on the required depth. This accuracy feature makes Focused Shock Wave Therapy much better for treating deeper issues within the body.

EMFOCUS-mechanism

🔹  The electromagnetic shockwave is based on the physical principle of electromagnetic induction. it enables very precise and highly sensitive dosing of the applied shock wave energy. The shock wave source uses a special coil to focus the shock waves. Shock waves are generated in water outside the body and then transmitted to the biological tissue

EMFOCUS -focal zone

🔹  The focal zone is the area of maximum energy intensity. its size is basically independent of the selected energy level. By contrast, the size of the treatment zone depends on the selected energy level and is generally larger than the focal zone.

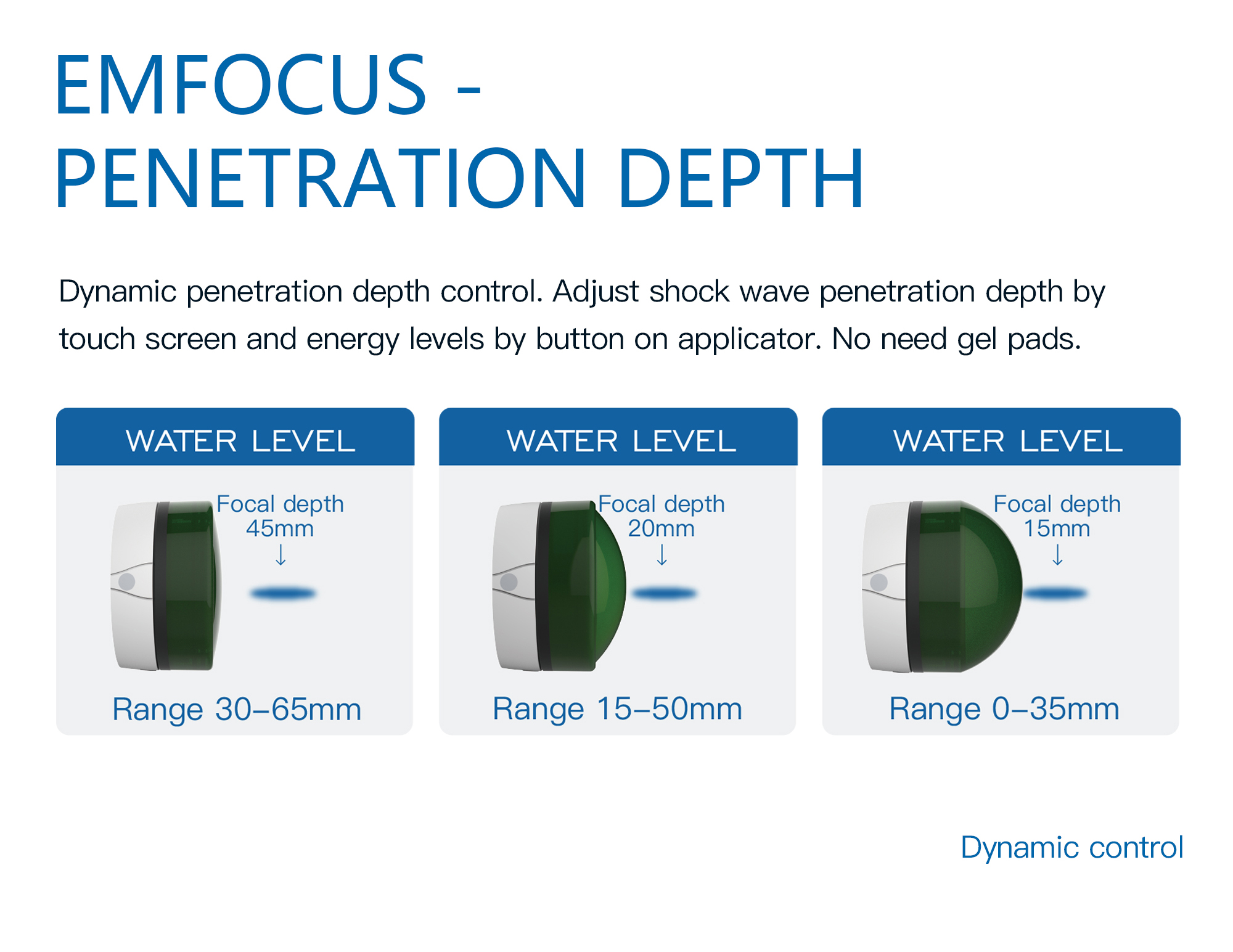

EMFOCUS-penetration depth

🔹  No need gel pads.

🔹  Dynamic penetration depth control.

🔹  Adjust shock wave penetration depth by touch screen and energy levels by button on applicator.

EMFOCUS-comfort treatment

Not only is the effectiveness better with Focused-ESWT, but the skipping-the-skin part means you don't stimulate the skin sensory network; this leads to a more comfortable session. And due to the comfort levels being better, higher doses can often be used.

EMFOCUS FEATURES

✅   No gel pad

✅   Game-changing and affordable focus shockwave

✅   Wider clinical applications

✅   Well defined, precise focus - perfect for diagnosis and therapy

✅   Wide range of energy settings with a pulse rate of up to 6 Hz

✅   12.1 inch large touch screen

✅   User-friendly software with treatment protocols and preset parameters

✅   Easy-to-operate handle with intensity adjustment buttons

Shockwave therapy, or focused shockwave therapy, is a treatment primarily used for musculoskeletal conditions. It's known to be effective for certain symptoms and conditions such as:

✅    Chronic Pain: Especially in areas like the shoulder, elbow, knee, or heel (plantar fasciitis).

✅   Tendonitis or Tendinopathy: Conditions like Achilles tendonitis, tennis elbow (lateral epicondylitis), or rotator cuff tendonitis.

✅   Calcific Rotator Cuff Tendinitis: This is a specific type of shoulder tendonitis where calcium deposits build up in the tendons of the shoulder, causing pain and stiffness.

✅   Plantar Fasciitis: Inflammation of the thick band of tissue that runs across the bottom of your foot, causing heel pain.

✅   Bone Healing: Some research suggests shockwave therapy may promote bone healing in fractures that are slow to heal (non-union fractures).

✅   Erectile Dysfunction: In urology, shockwave therapy has been used to potentially improve blood flow and treat erectile dysfunction
